2020 Ducati Diavel 1260, Engine Type: Ducati Testastretta DVT 1262, L-Twin cylinder, 4 valves per cylinder
Displacement: 1,262 cc (77.0 cu in.)
Bore and Stroke: 106 x 71.5 mm
Cooling: Liquid
Compression Ratio: 13.0 : 1
Fuel System: Bosch electronic fuel injection system, eq 56 mm elliptical throttle bodies with Ride-by-Wire system.
Transmission: 6 speed
Final Drive: Chain, Front sprocket Z15, Rear sprocket Z43
Front Suspension: 50 mm adjustable usd fork

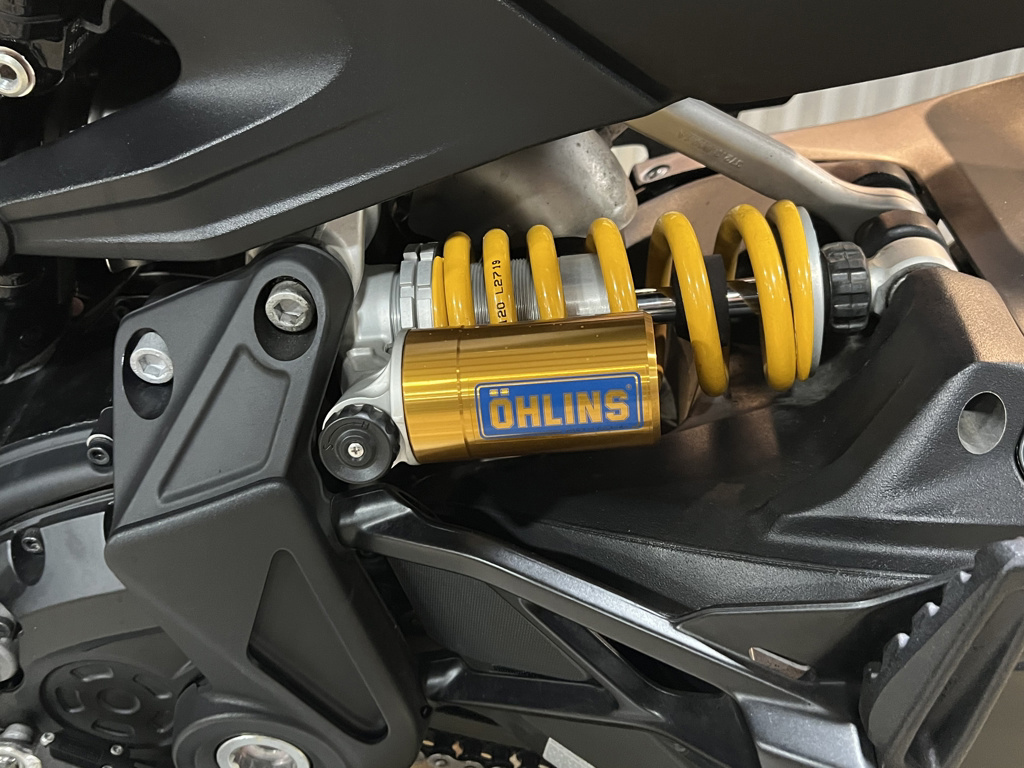

Rear Suspension: Monoshock, preload and rebound adjustable, Aluminium casted single-sided swingarm

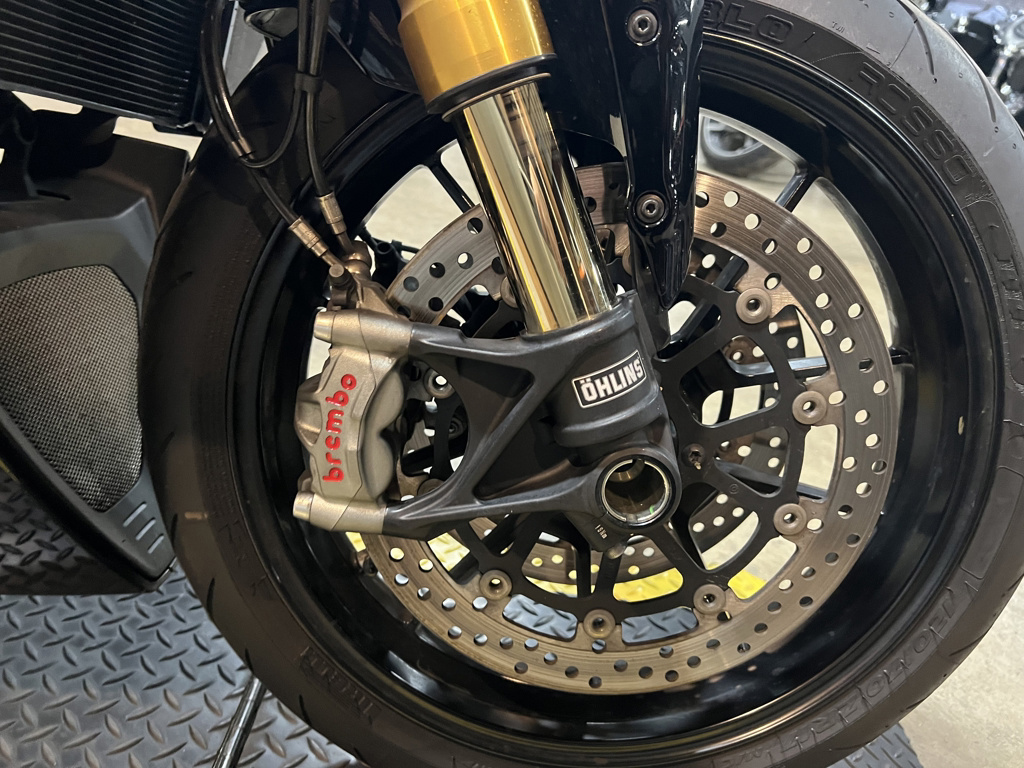

Front Brakes: 2 x 320 mm semi-floating discs, Radially mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial master cylinder, Bosch Cornering ABS Evo
Rear Brakes: 265 mm disc, 2-piston Brembo floating calliper, Bosch Cornering ABS Evo
Front Tire: Pirelli Diablo Rosso III 120/70 ZR17
Rear Tire: Pirelli Diablo Rosso III 240/45 ZR17
Wheelbase: 1,600 mm (63.0 in.)

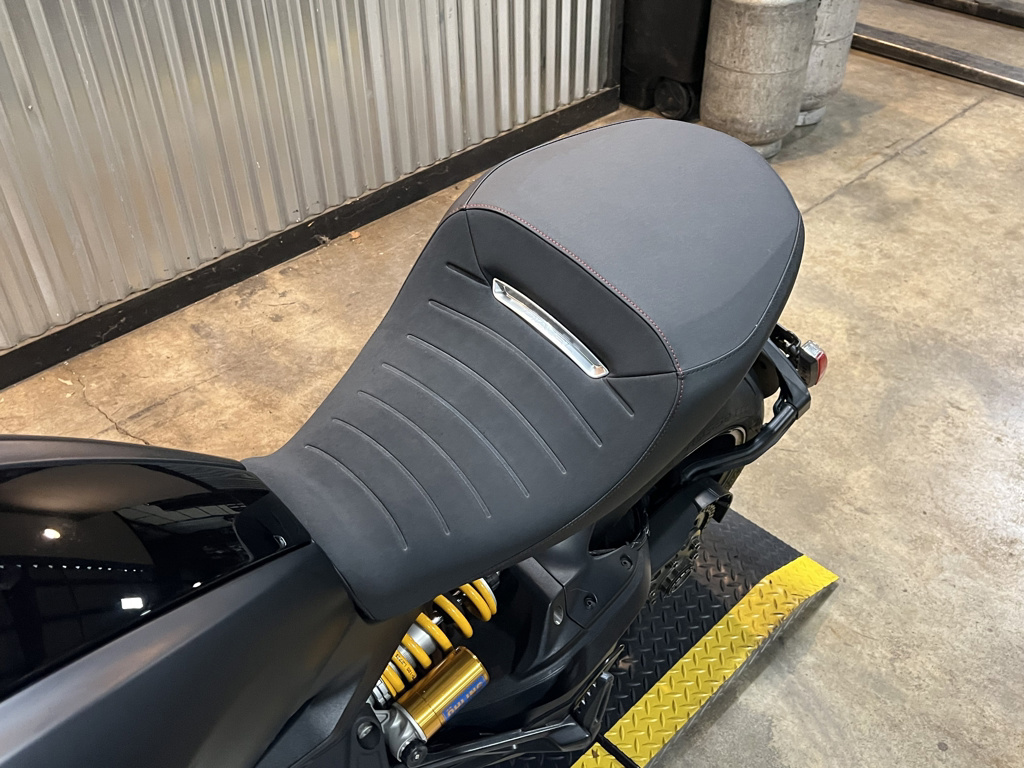

Seat Height: 30.7 in. (780 mm)
Rake: 27 deg.
Trail: 4.7 in. (120 mm)
Fuel Capacity: 4.2 US gal. (16 L)
Dry Weight: 481 lb. (218 kg)
Colors: Sandstone Grey, Dark Stealth
